Setting of Asso 12R5

Any c-hing can share the following setting experience (Say, the setting in JV):

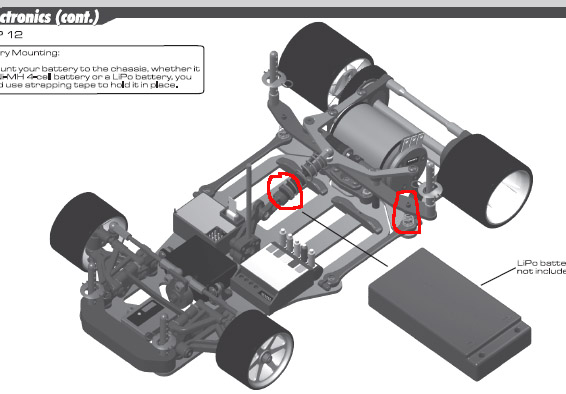

1) What is the depth of the set screw should be screw into the chassis brace (say, using silver side spring)?
2) What is the position of the shock collar should be place in the shock body? (It will affect the angle between chassis and lower motor plate)

thank in advance!!

Download the following pdf from Xray, It provide detail setup reference and suit all pan cars

http://www.teamxray.com/teamxray/showfile.php?file_id=5057

Thanks for your information~

Thanks for your information too~

side screw usually very little or no preload.  Especially if you use hard spring like silver....  center spring adjust it so the chassis is flat with rear pod.  If center a little higher than rear pod will give a little more rear grip.  But the car is less "predictable" when the rear end start to loose grip.

Many thanks for Kawada & jf813 c-hing!!

我架associate 5.1 有d推頭情况, 各位ching，頭彈弓用咩度數呢

你用speedmind?
如果係既話,你試下換呔先~

回復 joesheng 的帖子

真係咁差?我見幾多Ching 用...

回復 levinng 的帖子

有用呔水呀，咁唯有開套matrix 試下啦..... ching 用開邊隻呔呢?

回復 levinng 的帖子

Xceed F/M R/M,very good codition~

F/50% tire water,R/100%,
TRY TRY~

回復 joesheng 的帖子

Try try sin... Thanks ching!

If all original without option parts and tire water, can it run fast in good control?

回復 vin00002002 的帖子

Understeering if no tyre water. Btw if u play slow motor (eg.. 1cell +5.5T or 2 cell + 10.5T) there will be no impact to you.

回復 joesheng 的帖子

已經解決推頭問題， 原來我其中一邊A臂粒波子上下調轉左, 衣家用番speedmind 頭中尾中完全冇問題.

wanna play S120 with 60a + 5.5T + 2 cell, is that ok? seems nothing to set on 12 son but do i need to set anything? like spring, camber, tow in-out, ride height?

回復 jf813 的帖子

Side sprin is very funny, You can chose useing preload or not, And with preload you will get 2 times hardness  than non-preload

dxmaxian 發表於 2011-7-26 08:59


登錄/註冊後可看大圖

回復 jf813 的帖子

Side sprin is very funny, You can chose useing preload or not, And with preload y ...

ya...  just personally I don't really like to add lot of preload as this makes the steering too fast, not very stable.  I prefer to change to harder spring if necessary.  Just my 2 cents
