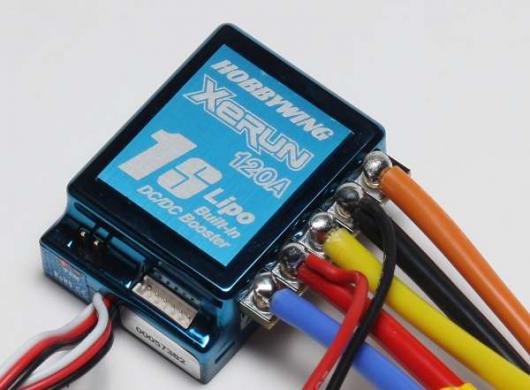

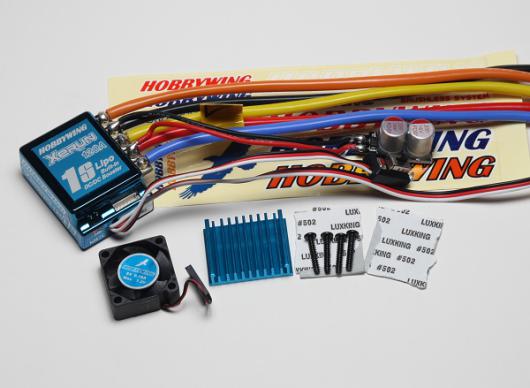

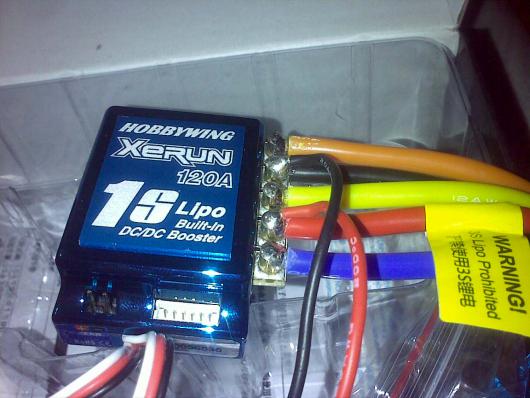

Hobbywing 120A-1S ECS

各位Ching ,唔知KWS有冇Hobbywing 1S ECS 返,用嚟玩1cell Lipo就 perfect

ECS spec:
1.1 输出能力：持续电流120A，瞬时电流760A；
1.2 电源输入：3-6节镍氢/镍镉电池组或1-2节锂电池组 （此电调严禁使用3节锂电）； 备注1
1.3 BEC输出：6V/2A；
1.4 内阻：0.0003欧姆；
1.5 支持马达类型：无感无刷和有感无刷马达；
1.6 支持马达T数： 1节锂电或3-4节镍氢： 1/12房车≥2.5T；
                                    2节锂电或5-6节镍氢： 1/10房车≥3.5T， 1/10越野车≥5.5T；
1.7 适用车型：竞赛级1/10和1/12平跑车，1/10 和1/8攀岩车；
1.8 尺寸：43mm（长）*36mm（宽）*33mm（高，含风扇）；
1.9 重量： 105g；
备注1:   风扇直接由动力电池供电，未经稳压。
ref. link
http://www.hobbywing.com/ArticleShow.asp?ArticleID=464

built-in booster  , 用黎玩1Cell Lipo 12仔幾好wo , 唔知KWS賣緊未呢?

Is it the new model?

見taobao 賣緊 600---7xx  人仔都價錢ok

built-in booster  , 用黎玩1Cell Lipo 12仔幾好wo , 唔知KWS賣緊未呢?
RC881 發表於 2010-9-9 11:12


登錄/註冊後可看大圖

睇 RCfans.com forum D Ching話同 Hobbywing 120A v.2.1 同價
所以問KWS 返佐貨未?

Is it the new model?
andyQQ 發表於 2010-9-9 11:13


登錄/註冊後可看大圖

Yes,it is the newest model for 1/12 use 1 cell lipo

萬里有貨

萬里有貨
winclearly 發表於 2010-9-9 11:41


登錄/註冊後可看大圖

Do u know how much?

睇 RCfans.com forum D Ching話同 Hobbywing 120A v.2.1 同價
所以問KWS 返佐貨未?
coke 發表於 2010-9-9 11:30 AM


登錄/註冊後可看大圖

唔該C兄!  下次自己出開KWS 睇睇"極叔"有冇貨先

回復 9# coke
7XX

Good product for 1/12 users. $7xx is acceptable.

回復  coke
7XX
winclearly 發表於 2010-9-9 12:25


登錄/註冊後可看大圖

Thks, $7XX is a reasonable price, I will be buy one to try on my CRC gen XL.
It was because LRP SXX v.2 nil stock in KWS

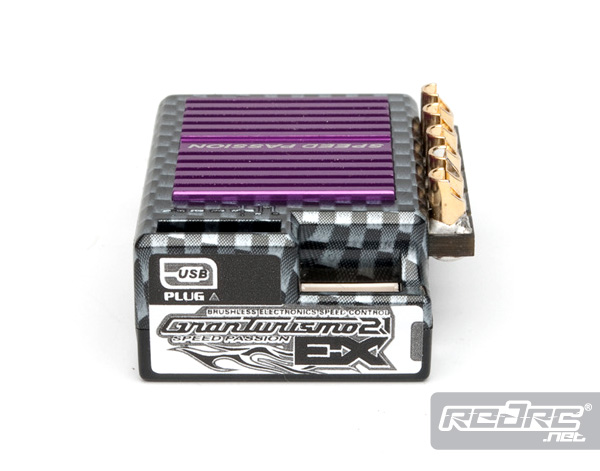

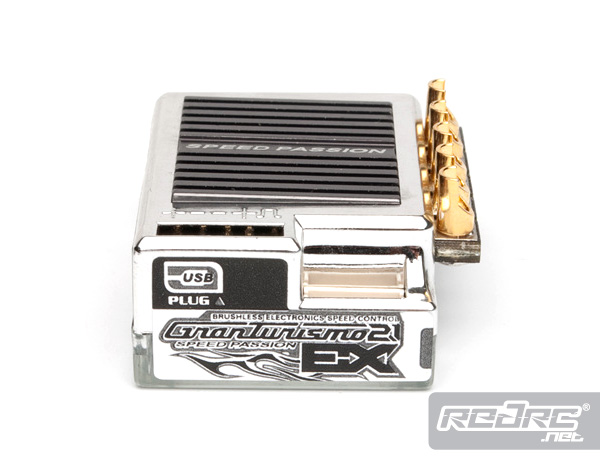

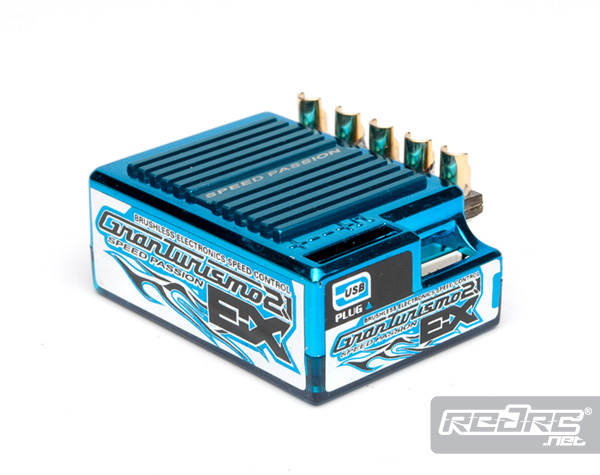

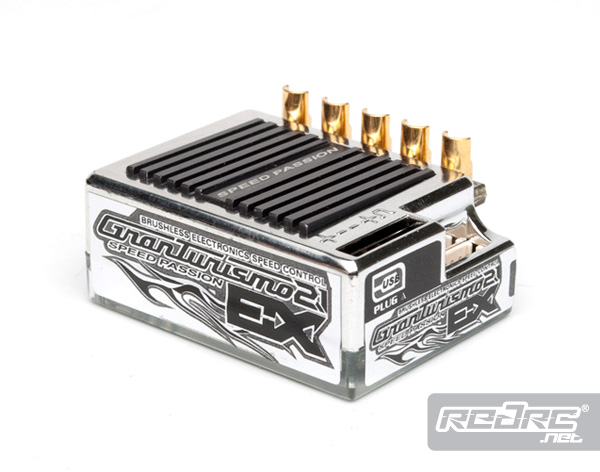

原本SP都有新ECS for 1 cell Lipo, 重有三種 colour
GT2.1-EX features:
Digital Racing Response System - DRRS
9 Selection Digital Racing Modes (From Level 1 to Level 9)
Advanced Multi Timing System - AMTS
Special 8 mode brushless motor timing adjustment system
Design suitable for different brand of brushless motor which give you the best performance for both ESC and Motor
9 stages of Supercharger BOOST level
9 stages of motor RPM engagement adjustment
9 stages of Supercharger full throttle time adjustment
7 stages of Supercharger PUNCH level
Standard Smart ESC Program Unit
came with the ESC LED Programmer Card with 14 adjustable functions, no need to use a computer or counting flashing lights.
Leading Brushless ESC Specification
Support both sensored and sensorless brushless motors
Support up to 3.5T brushless motor on 1 cell lipo or 4.8V battery
Support up to 5.5T brushless motor on 2 cells lipo or 7.2V battery[img][/img][/img]

no red color to match CRC.

how much of GT2.1-EX ?

how much of GT2.1-EX ?
poweron707 發表於 2010-9-10 12:35


登錄/註冊後可看大圖

    I want to know too, and when come out?

個樣幾靚仲有顏色選擇,唔知SP呢隻持續電流及瞬間電流係幾多A?

個樣幾靚仲有顏色選擇,唔知SP呢隻持續電流及瞬間電流係幾多A?
lolototo 發表於 2010-9-10 14:05


登錄/註冊後可看大圖

    佢應該係2.0pro既新，我估點都有120A掛

佢應該係2.0pro既新，我估點都有120A掛
buzzybee82 發表於 2010-9-10 14:19


登錄/註冊後可看大圖

咁都ok,不過唔知線性如何, 因為我之前玩過LRP好正(當然啦咁貴), 如果呢兩款唔差好遠就不防一試, 反正聽師兄講LRP成日都冇貨
