標題: SILVERLIT 1/12遙控電單車 "行駛測試報告" [打印本頁]

作者: kfli 時間: 2008-10-20 15:30
標題: SILVERLIT 1/12遙控電單車 "行駛測試報告"

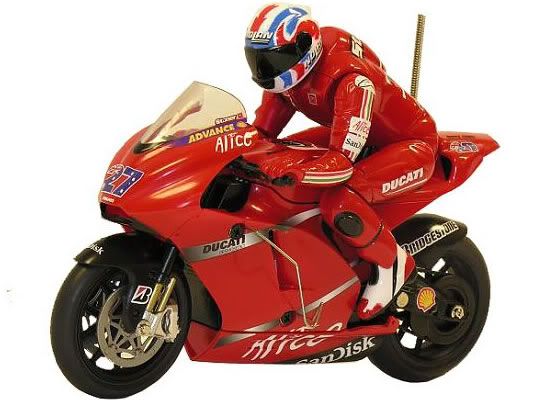

I discovered the 1/12 RC bike at HK international airport (Price $598) in 1/10/08, but I brought it in Mongkok until I back to HK, 14/10/08.

登錄/註冊後可看大圖

According the manual, it can replace the band. But I took it out, the band is not like general crystal (Two pin), it seems like mini electronic board.

行駛測試報告,

1, Speed is acceptable in this small scale.
2, Easy to control,
3, The transmitter can adjust the acceleration curve and braking curve, it is really useful and very creative.
4, It seems can not change bearing, because it is too small.
5, Battery can play around 8 minutes.

Suggestion Trips.

Remove the front wheel "C Ring" ,then remove the front wheel and the axle, add some bearing oil into the axle to reduce the fiction, it can improve the Flywheel performance and stabling.

登錄/註冊後可看大圖

作者: wave 時間: 2008-10-20 16:13

原帖由 kfli 於 2008-10-20 15:30 發表

 登錄/註冊後可看大圖

I discovered the 1/12 RC bike at HK international airport (Price $598) in 1/10/08, but I brought it in Mongkok until I back to HK, 14/10/08.
http://img.idealo.com/folder/Product/1192/0/1192012/produ ...

係唔係比例轉向?
乜野motor?
Thx!

作者: spring 時間: 2008-10-20 16:58
RX part it can replace the band. But I took it out, TX part the band is not like general crystal (Two pin), it seems like mini electronic board. U can use another FM 27 control.

作者: kfli 時間: 2008-10-20 17:27
標題: 回復 2# 的帖子
係唔係比例轉向?
Reply: Yes 比例轉向, speed is also

乜野motor?
Reply: I don't know, not yet dis-assemble it.

作者: kfli 時間: 2008-10-20 17:30

原帖由 spring 於 2008-10-20 16:58 發表

 登錄/註冊後可看大圖

RX part it can replace the band. But I took it out, TX part the band is not like general crystal (Two pin), it seems like mini electronic board. U can use another FM 27 control.

It is very good suggestion.

I should double check the cystal/band inside the bike, I hope it is general size of FM band.

作者: wave 時間: 2008-10-20 18:32

原帖由 kfli 於 2008-10-20 17:27 發表

 登錄/註冊後可看大圖

係唔係比例轉向?
Reply: Yes 比例轉向, speed is also

乜野motor?
Reply: I don't know, not yet dis-assemble it.

Thx!

作者: michaeltam 時間: 2008-10-22 07:06
http://tw.youtube.com/watch?v=2h73QrJ5p0w

作者: cmhk 時間: 2008-10-22 09:10
Thanks for excellent report. Keep going for more RC report.

作者: kfli 時間: 2008-10-22 16:38
CM
Thank you.
Now In DSER ha ha........

作者: michaeltam 時間: 2008-10-22 16:52
我個FD 佢買咗, 仲改咗鋰電來係藍球場來玩, 速度對於佢比例來講適合, 唯不能轉太細灣.

作者: kfli 時間: 2008-10-22 16:59
標題: 回復 10# 的帖子
改鋰電.....good,

Please suggest which 鋰電 is fit the size. Because I also search the fit size 鋰電.
How much? Where to buy?

Thanks.

作者: 0433351410 時間: 2008-10-22 18:05
Where still can buy?

作者: michaeltam 時間: 2008-10-22 19:41
鴨仔街, 應該係叫lithium Batteries, Ultra Fire, 3.6V, Like 3A Sizes. 兩粒自己焊電片和加插頭.
係度想讚美我個Fd, 又借Silverlit 和 Kyosho 電單車給我玩, 真係好人.

作者: kfli 時間: 2008-10-22 20:13
Thank you V.much for your information.

But........ I just came back from 鴨liu街, then watch your reply. So, I need there once again..........

作者: pcwu 時間: 2008-10-24 00:23
KF, I got one as well, let's go racing! I got band A, which band you bought?

I could'nt find the battery that can replace one by one, it should be a Nimh 4.8V 200mh type, so lithium one with 3.6 or 3.7V won't work unless you put 2cell in series (7.2~7.4 V)and add a regulator (step down to 4.8 V) but that won't fit into the body

作者: michaeltam 時間: 2008-10-24 07:30
我個FD 既做法係係鴨仔街買兩粒Ultra Fire Lithium Batteries(類似3A Sizes), 電片和插頭, 適合Size 既熱縮膠, 再買類似E Sky 既Balancer charger. 自行焊接. 無錯, 差滿是行 4.2V x 2 = 8.4V. 係唔需要Step down to 4.8V. 但架車行快咗, 玩過幾次無燒底板.

作者: kfli 時間: 2008-10-24 10:52
Michaeltam,

Thanks your information.
4.8V up to 8.4V, it seems very dangerous. Very easy to burn it.

I need to think about it.

Many thanks again.

作者: kfli 時間: 2008-10-24 10:57

原帖由 pcwu 於 2008-10-24 00:23 發表

 登錄/註冊後可看大圖

KF, I got one as well, let's go racing! I got band A, which band you bought?

I could'nt find the battery that can replace one by one, it should be a Nimh 4.8V 200mh type, so lithium one with 3.6 ...

pcwu,

U got one......

. I think U only play RC plane

So, if I buy the spare modify battery(lithium), I help you to buy together la. (I assume U have lithium charger).

CM buy it or not?

Let's play together later.

KF

作者: cmhk 時間: 2008-10-25 02:23
KF,
No money

...all lose in stock market. Let's play with pc and I can help you to take video..

作者: kfli 時間: 2008-10-25 07:23

原帖由 cmhk 於 2008-10-25 02:23 發表

 登錄/註冊後可看大圖

KF,
No money ...all lose in stock market. Let's play with pc and I can help you to take video..

CM,
Don't worry, today is 25/10, Pay day.

Someone told me in 03, " I don't eat, my toys also need to eat."

作者: pcwu 時間: 2008-10-25 23:35
KF, any report for the new battery? how mcun mah of it ?

作者: kfli 時間: 2008-10-25 23:42
標題: 回復 21# 的帖子
OK, no problem.

500mah. (But only can charge it near 200 mah, ah....

)

Enjoy to play it. Today charge it twice, speed Increase but seems playing time not so long for 500mah.

I gave U yesterday ga la , ha
